Ratchet Strap Hook
Ratchet Strap Hook
Regular price
$19.90 USD
Regular price
Sale price
$19.90 USD
Unit price
per
Product Name: 120x1 RSH Set
Part Number: HRSHA1
CAD file Download

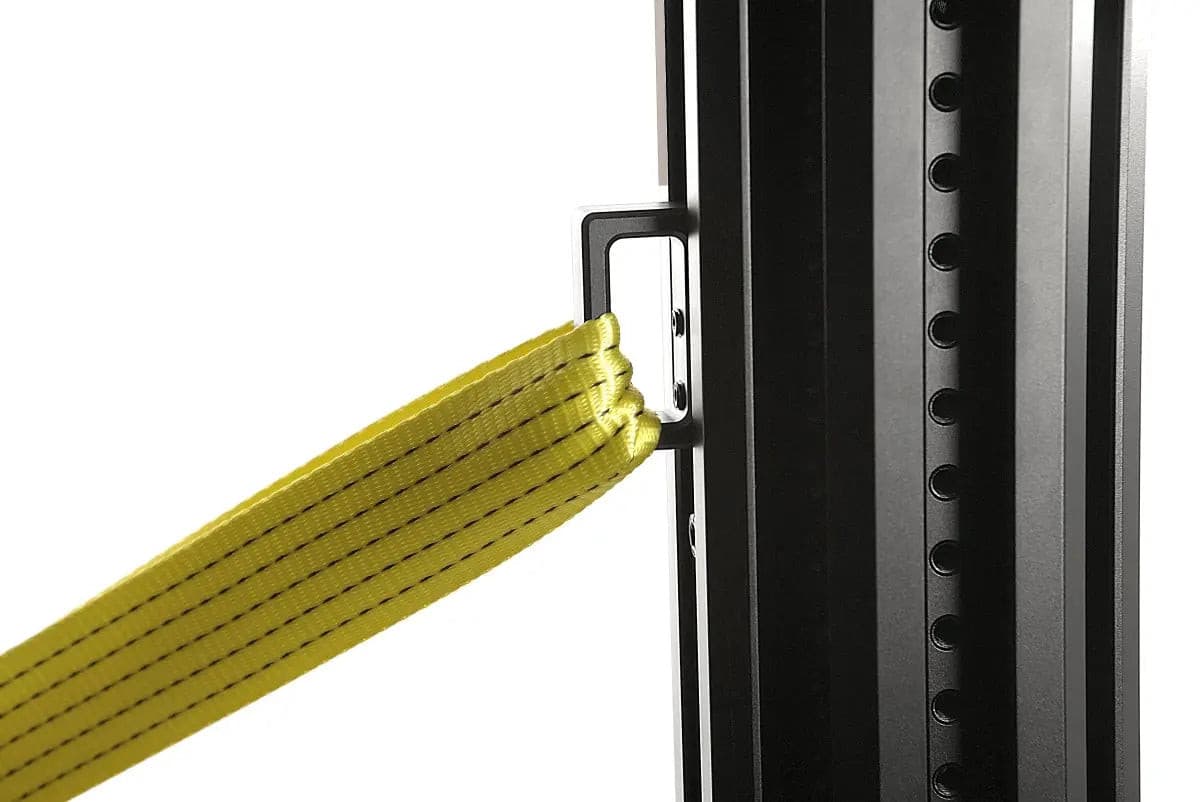

Solid and secure anchor points for ratchet straps, chains, hooks, or other mounting and hanging purposes. Inner open 30x20mm, holds up to 80Kg.
Works with (not included):
- 1pc 120-series Ultra Pillar
- 1pc 120-series Accessories Connector OS FS AC (optional)
Size Guide
Single screw hole
| 120 | 60 | |
|---|---|---|
| Dimension | 82 x 44.5 x 38mm | 41 x 22 x 19mm |
| Weight | 117g | 15g |
| Material | 6061 T6 Al | 6061 T6 Al |
Double screw hole
| 120 | 60 | |
|---|---|---|
| Dimension | 102 x 44.5 x 38mm | 56 x 22 x 19mm |
| Weight | 132g | 16.5g |
| Material | 6061 T6 Al | 6061 T6 Al |
