Ultra Pillar
Ultra Pillar
Regular price
$29.00 USD
Regular price
Sale price
$29.00 USD
Unit price
per
Product Name: 60 Pillar
Part Number: D1AAAA

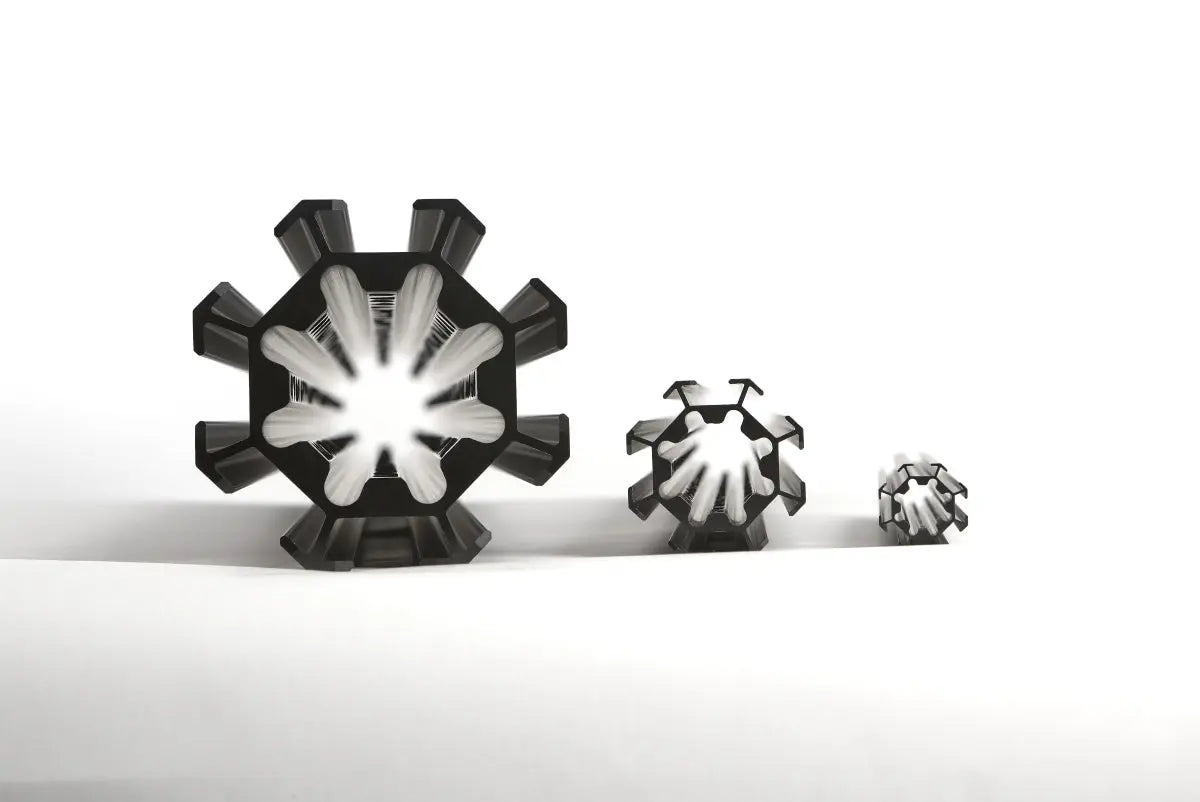

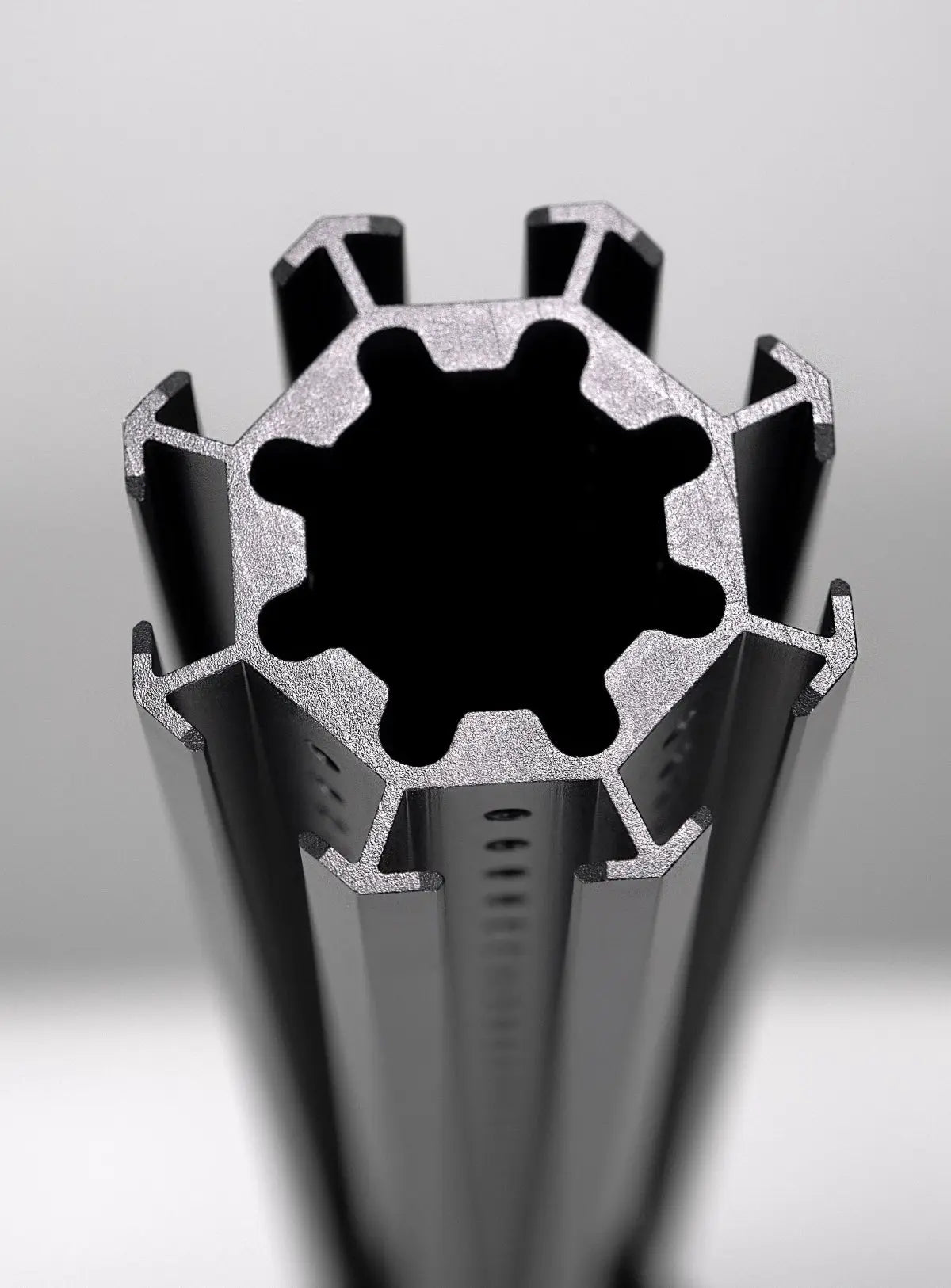

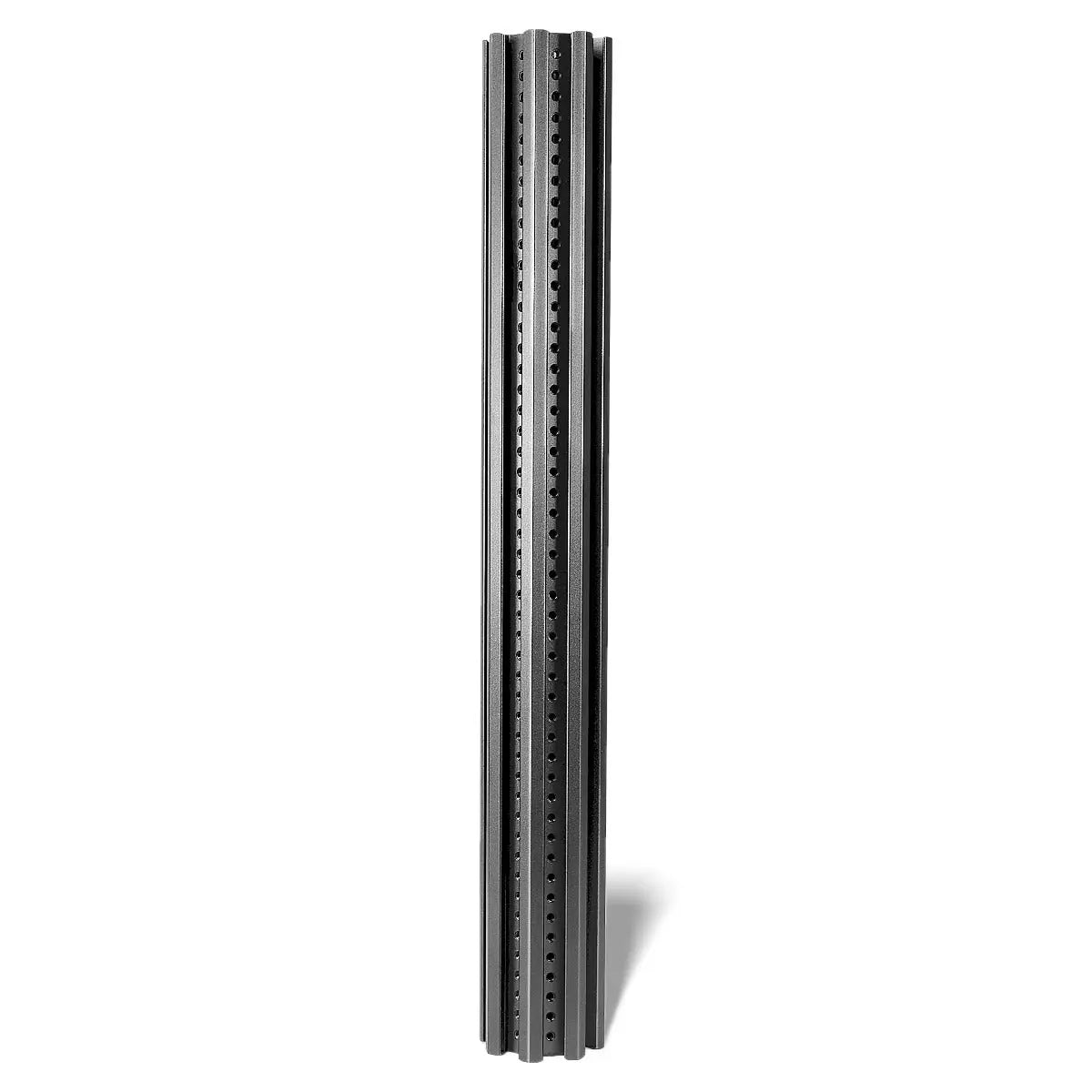

Octagon pillar, the main structure of the 60 series. Each side of the pillar has M4x0.7 thread holes every 10mm. Channel opening: 10mm
Works with (not included):
- M4x0.7 screws
- 60 series connectors and accessories

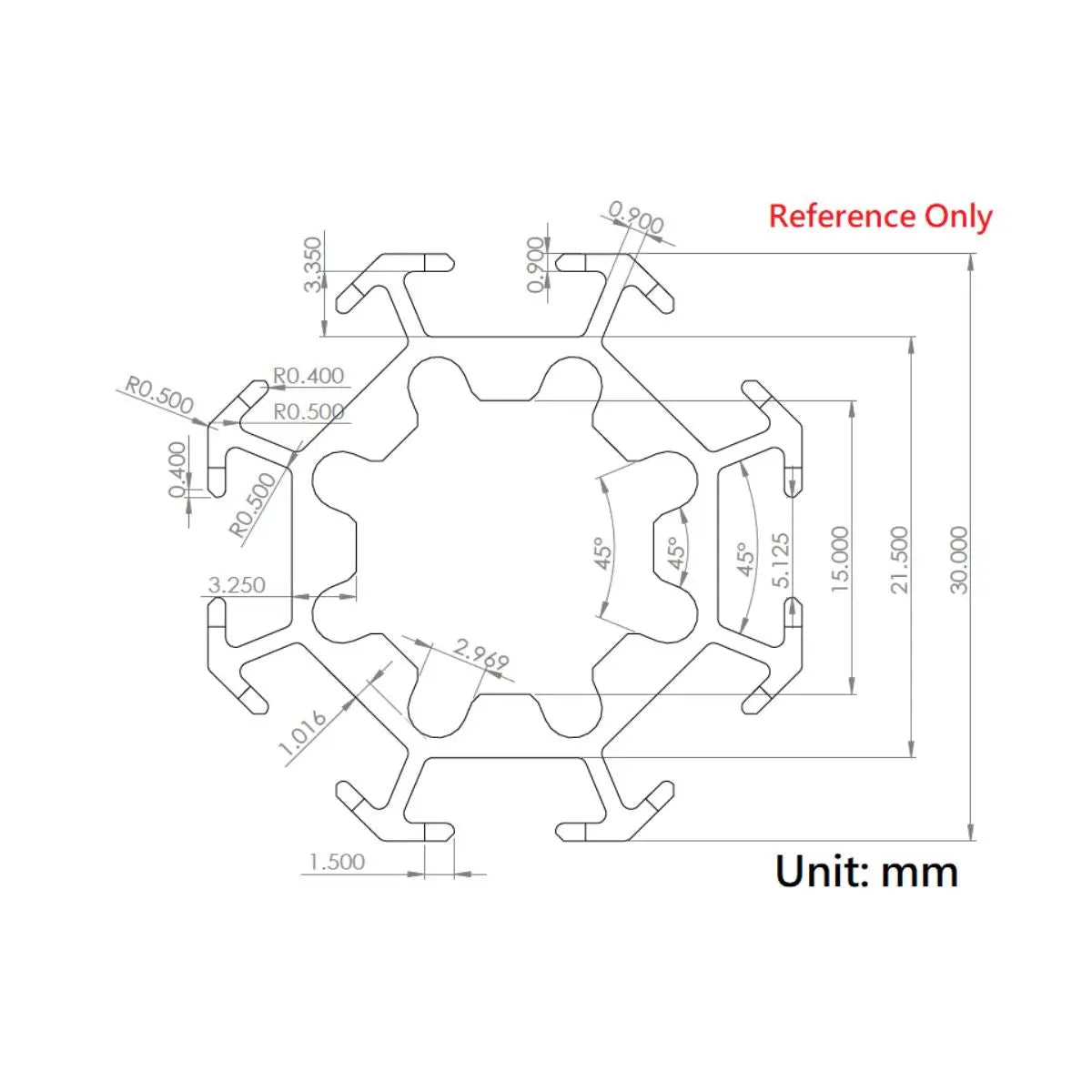

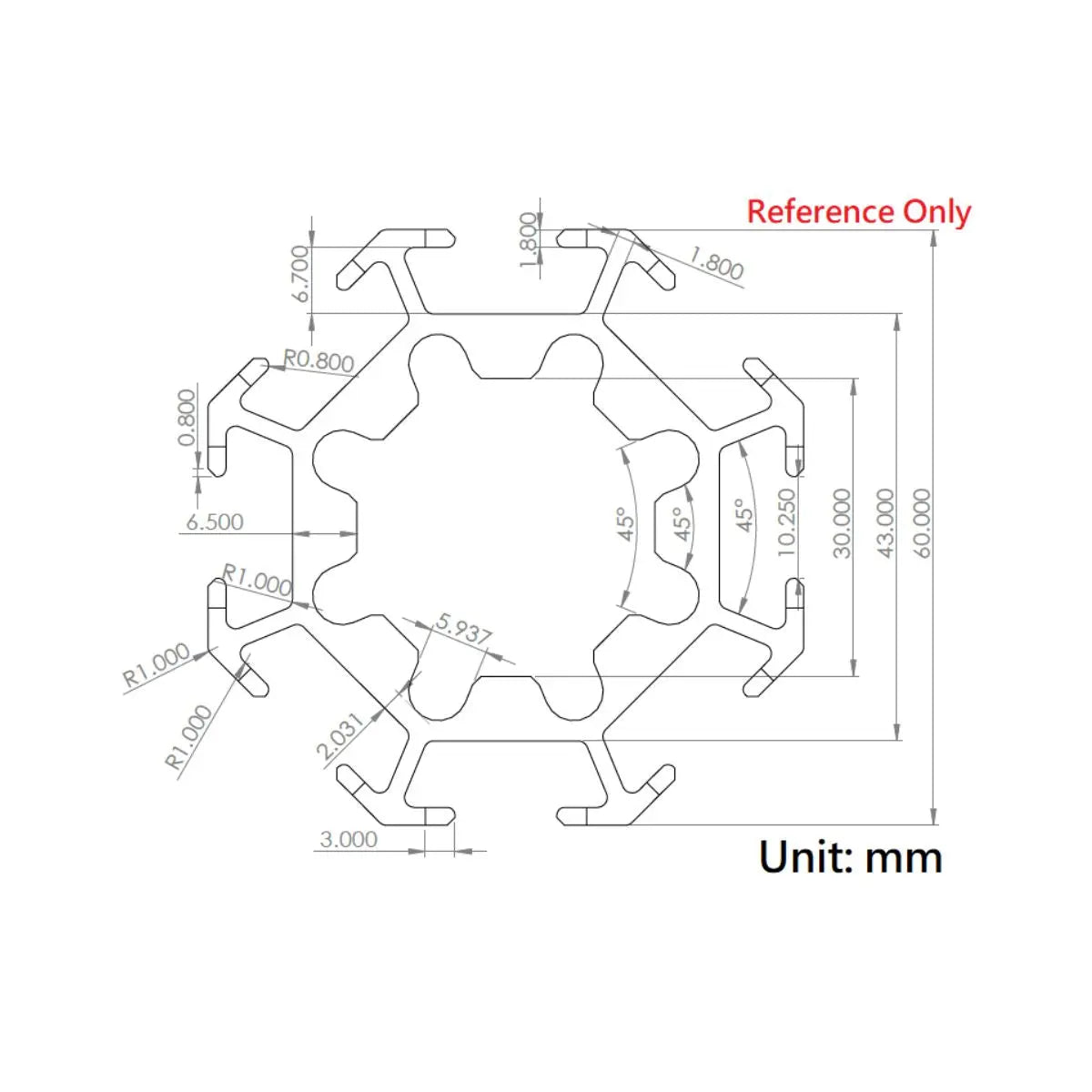

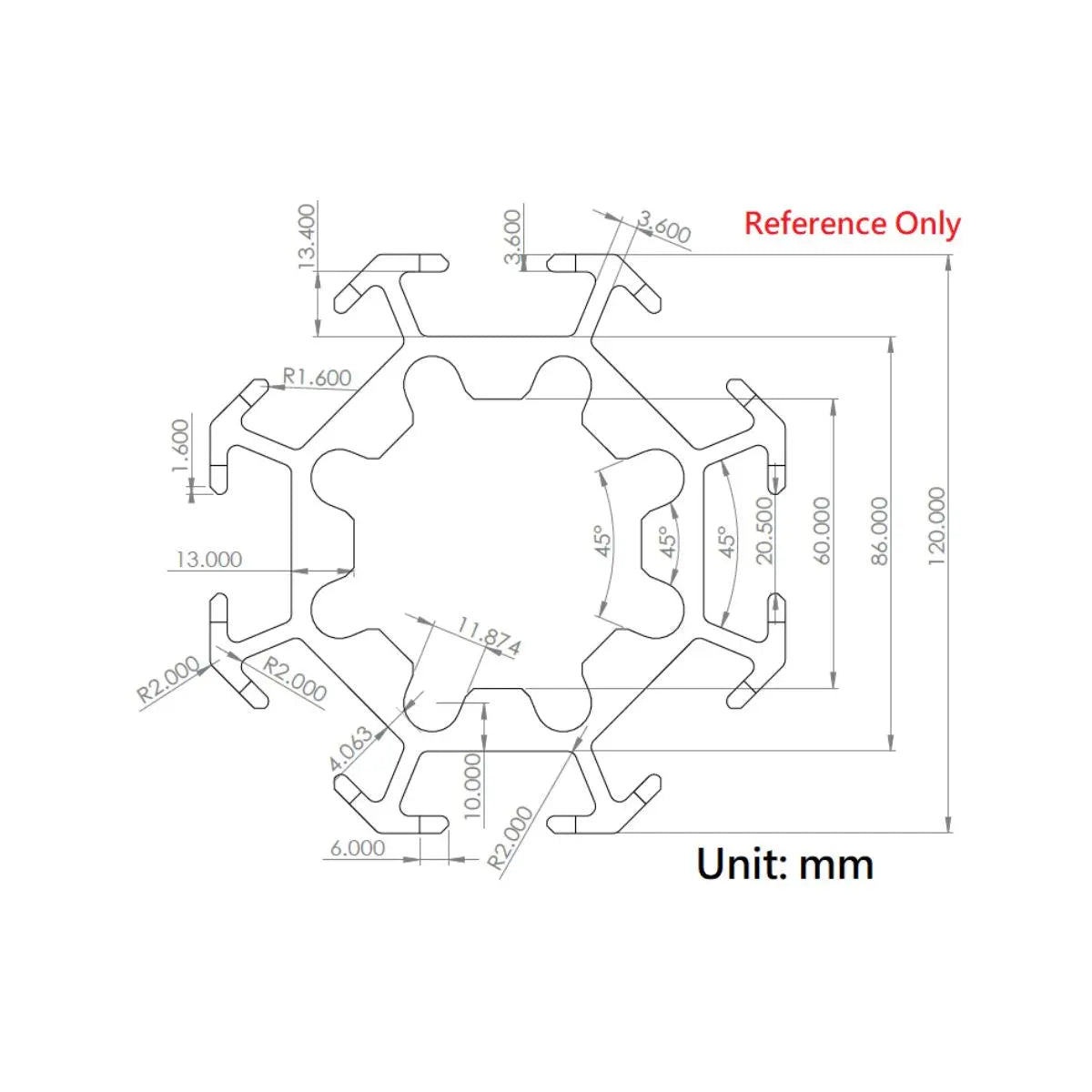

- Size Guide
- Loading Capacity
| 120 | 60 | 30 | |
|---|---|---|---|
| Dimension | 120 x 1000mm | 60 x 500mm | 30 x 250mm |
| Weight | 8.7Kg | 1.1Kg | 0.136Kg |
| Thread | M8x1.25 | M4x0.7 | M2x0.4 |
| Material | 6061 T5 Al | 6061 T5 Al | 6061 T5 Al |
| Channel Opening | 20mm | 10mm | 5mm |
Reference Only: depending on different factors and conditions, the real material properties might be different
| Series / Length | 120 / 1000mm | 60 / 500mm | 30 / 250mm |
|---|---|---|---|
| Scenario A | 600 kg | 150 kg | 37.5 kg |
| Scenario B | 1200 kg | 300 kg | 75 kg |
| Scenario C | 4800 kg | 1200 kg | 300 kg |
| Scenario D | 12000 kg | 3000 kg | 750 kg |
Structural Safety Factor: 2
 |
