Flat Plate Stand
Flat Plate Stand
Regular price
$69.00 USD
Regular price
Sale price
$69.00 USD
Unit price
per

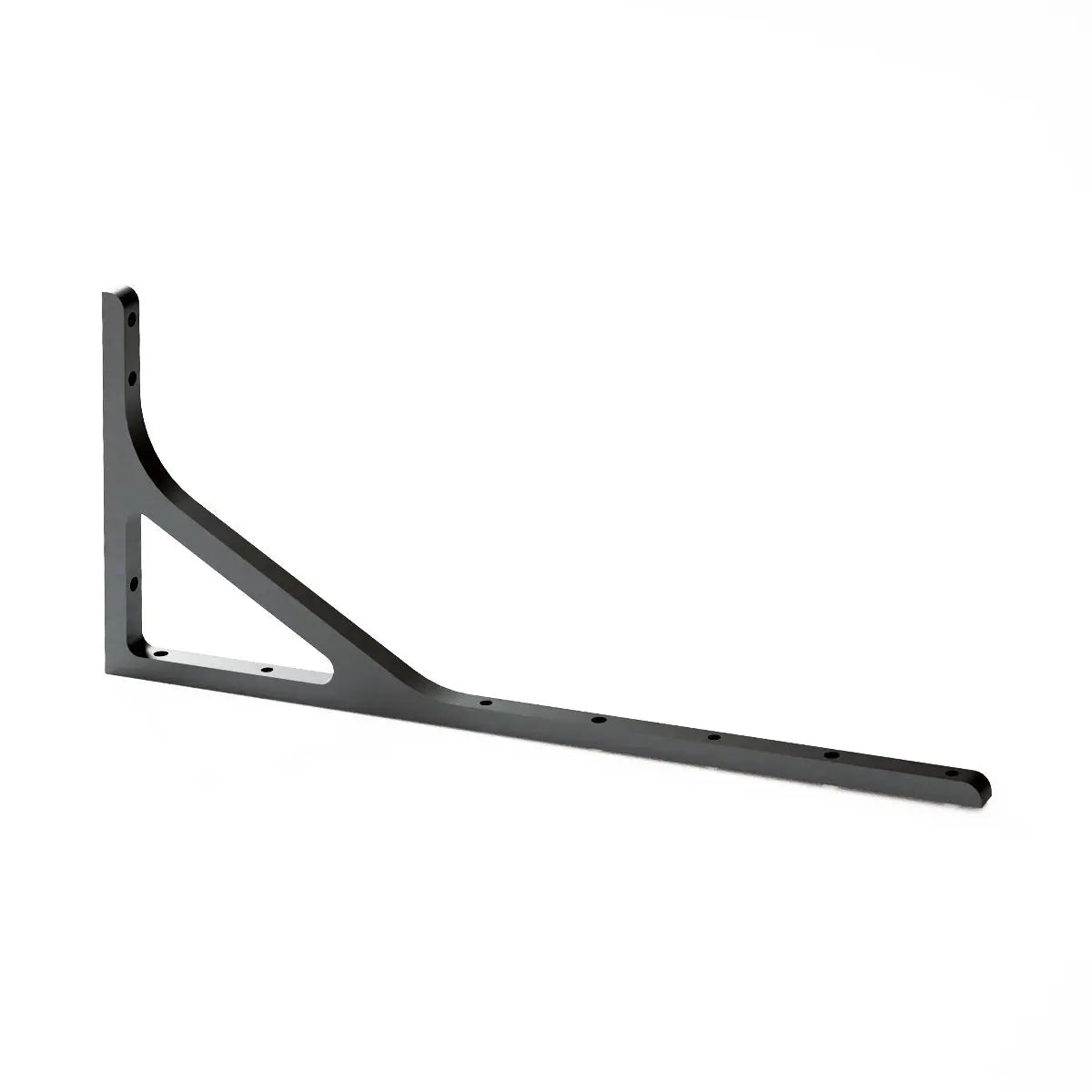

Product Name: 120x60 FPS
Part Number: HFPSJB
CAD file Download

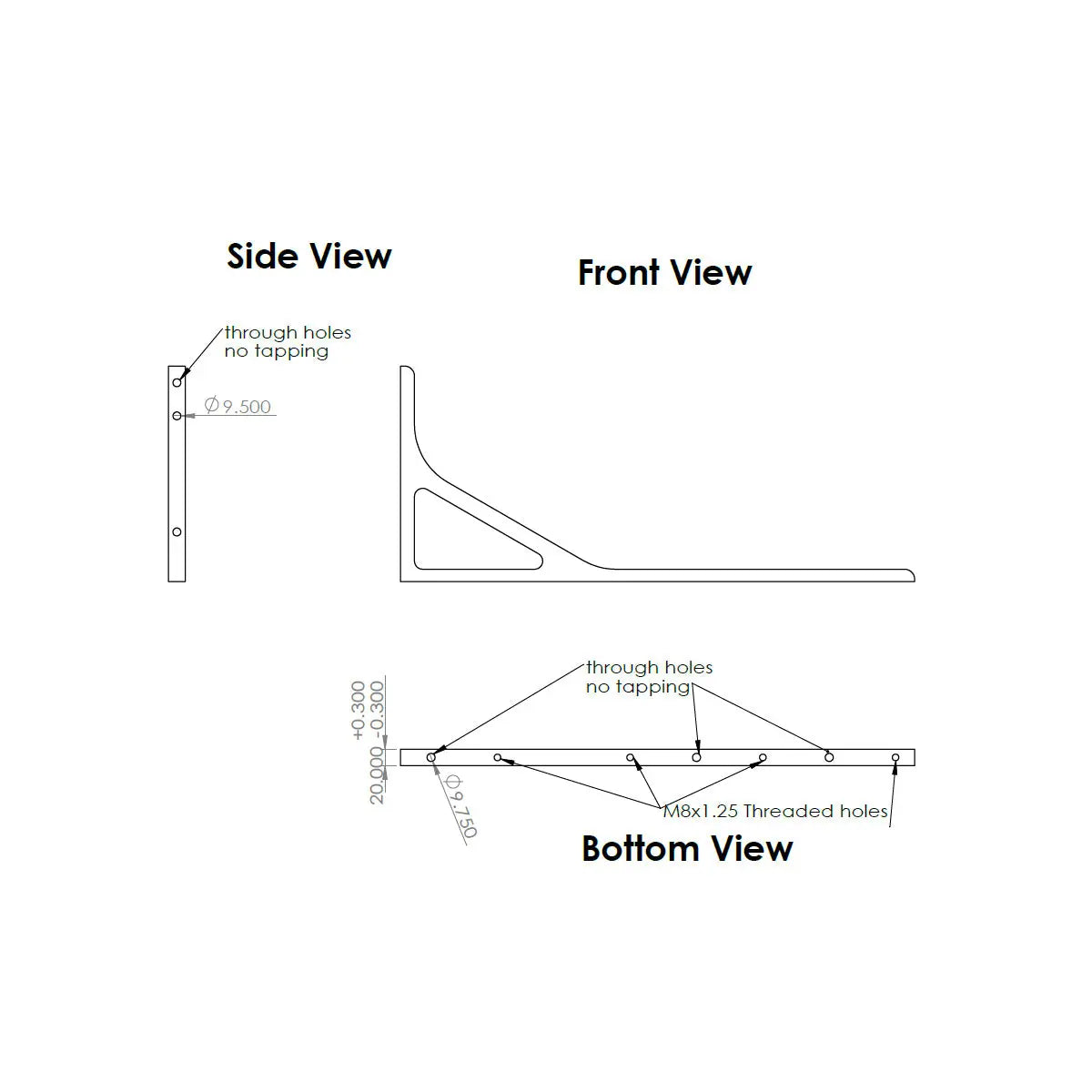

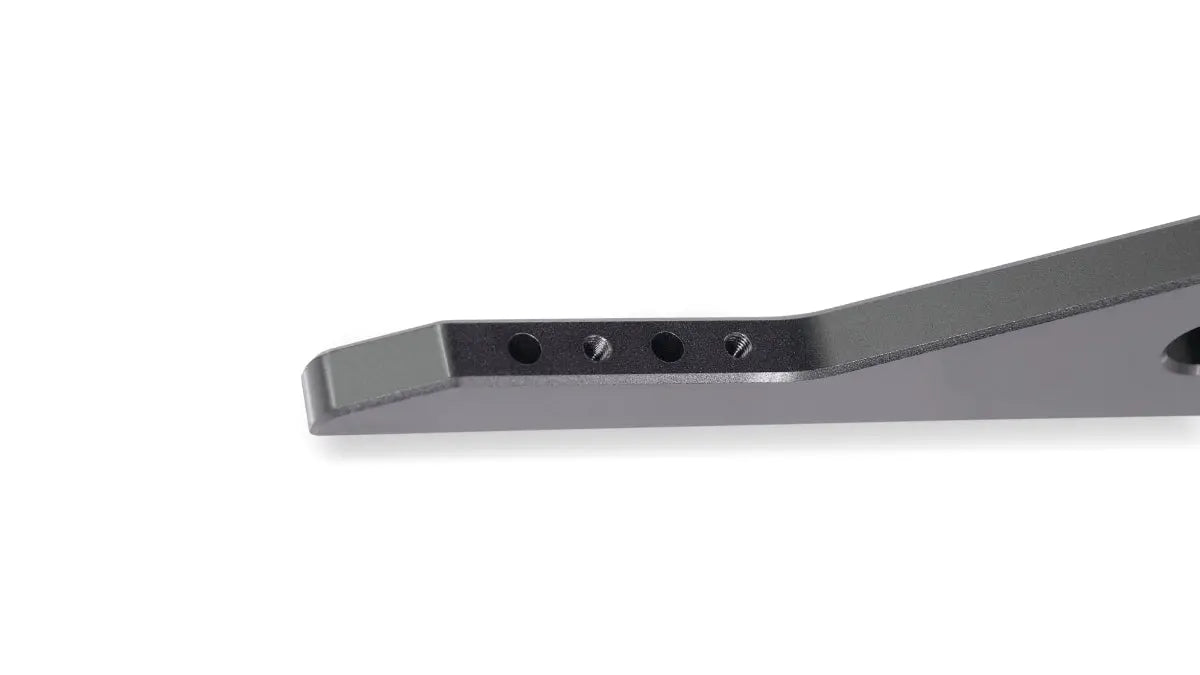

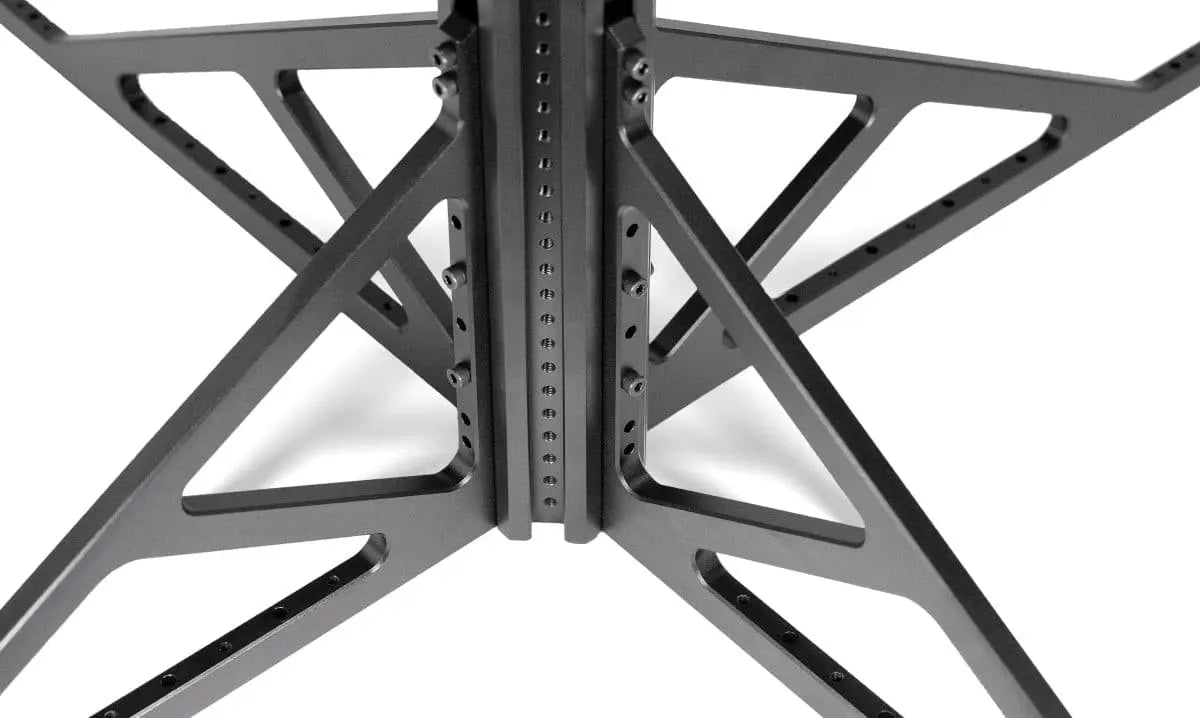

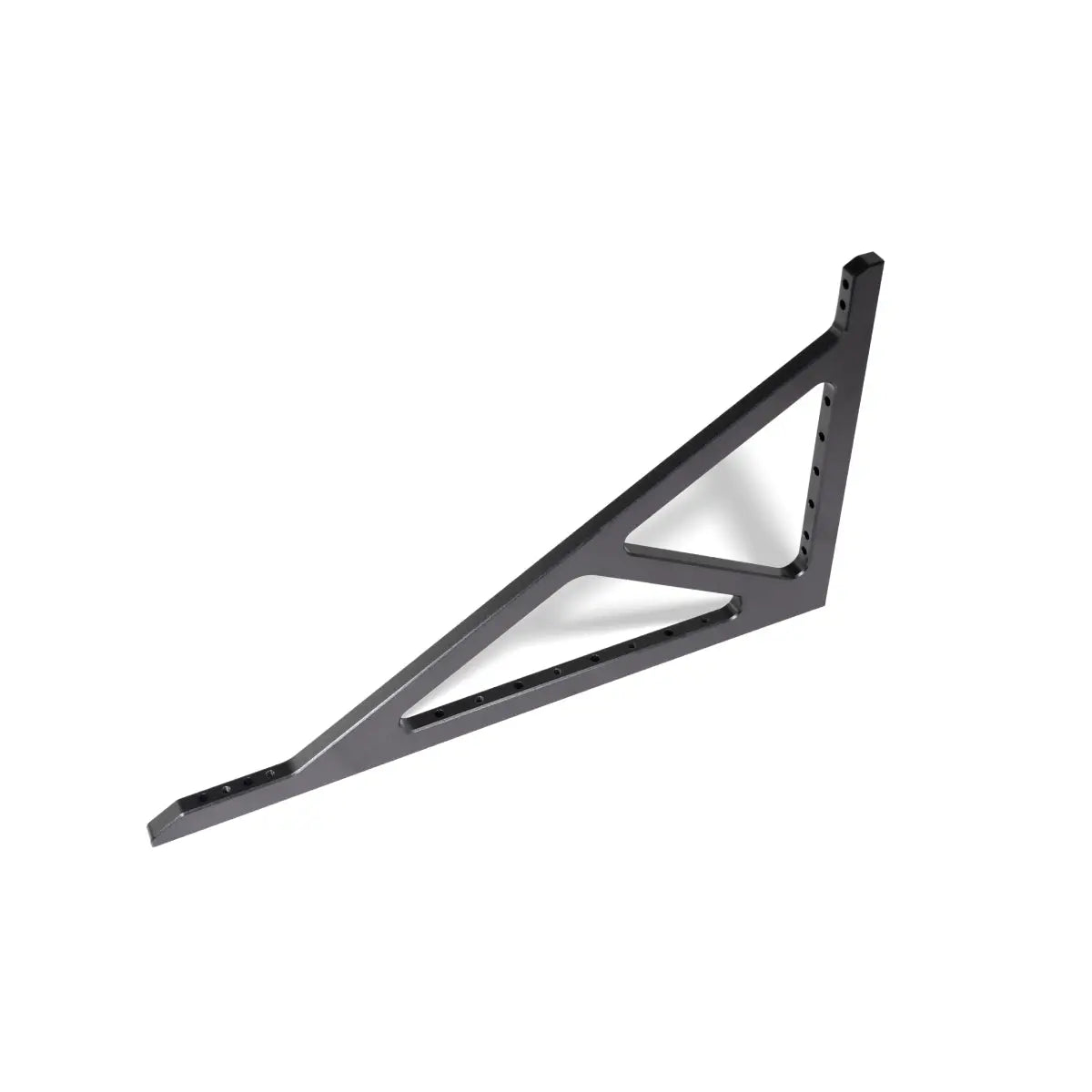

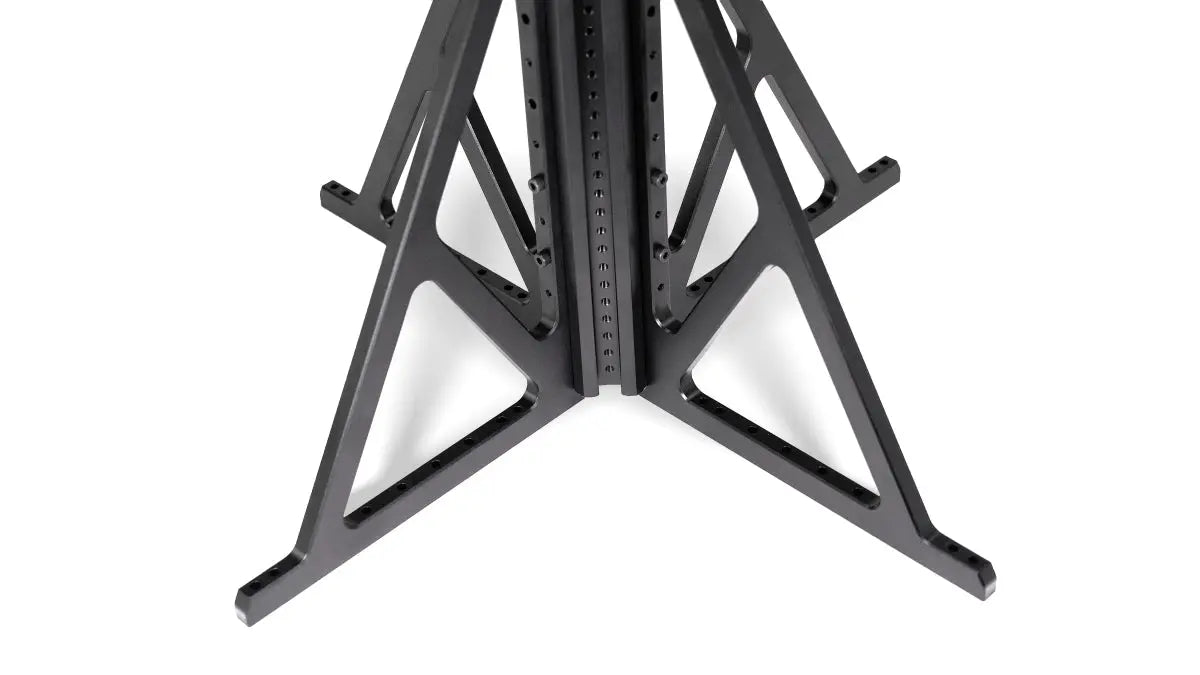

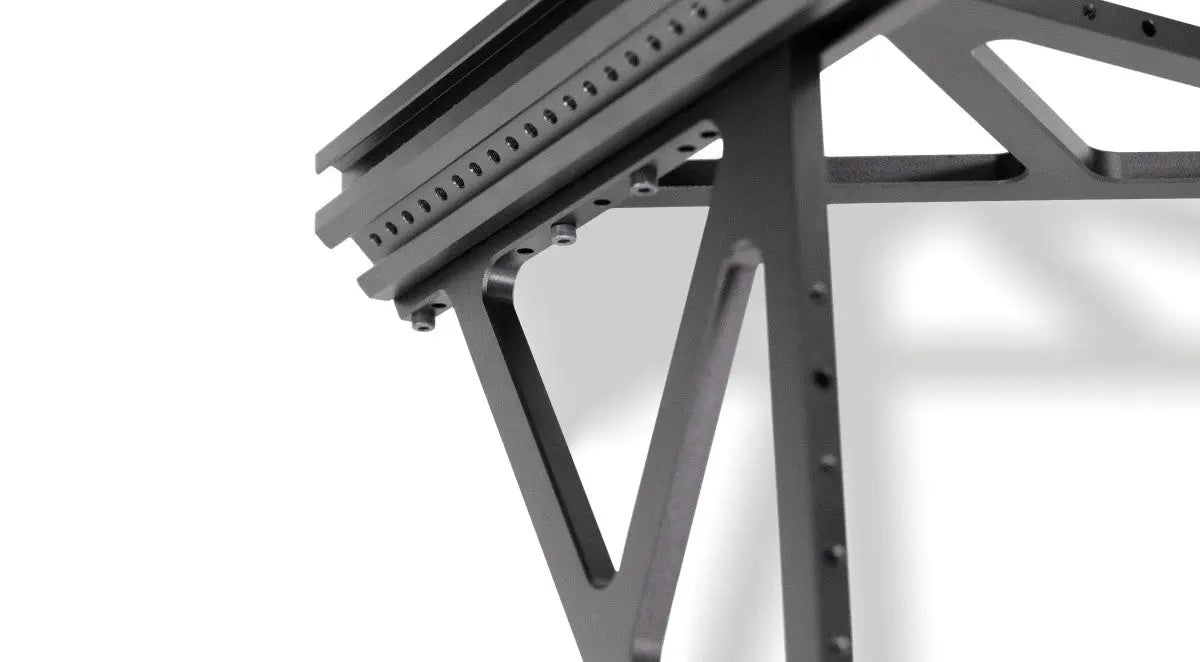

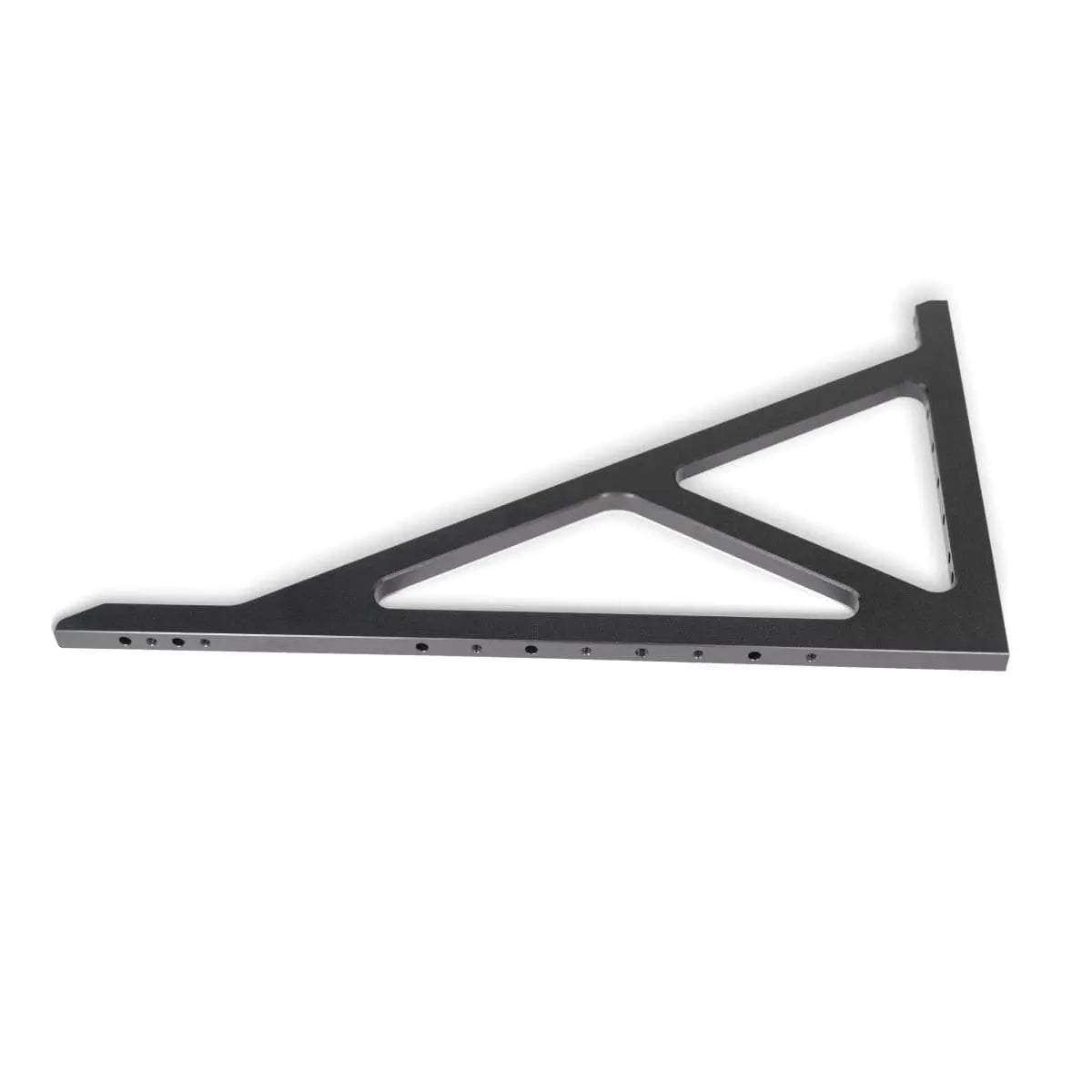

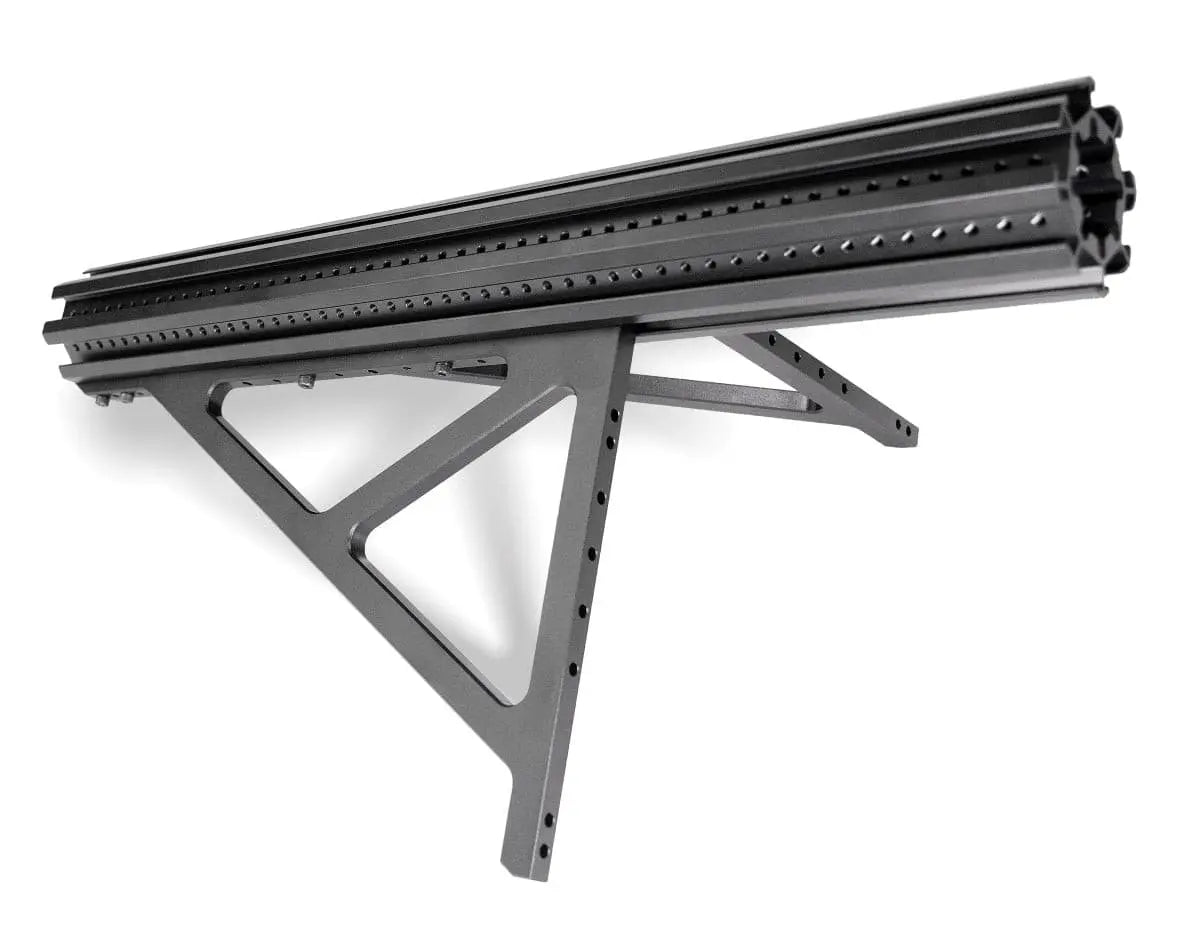

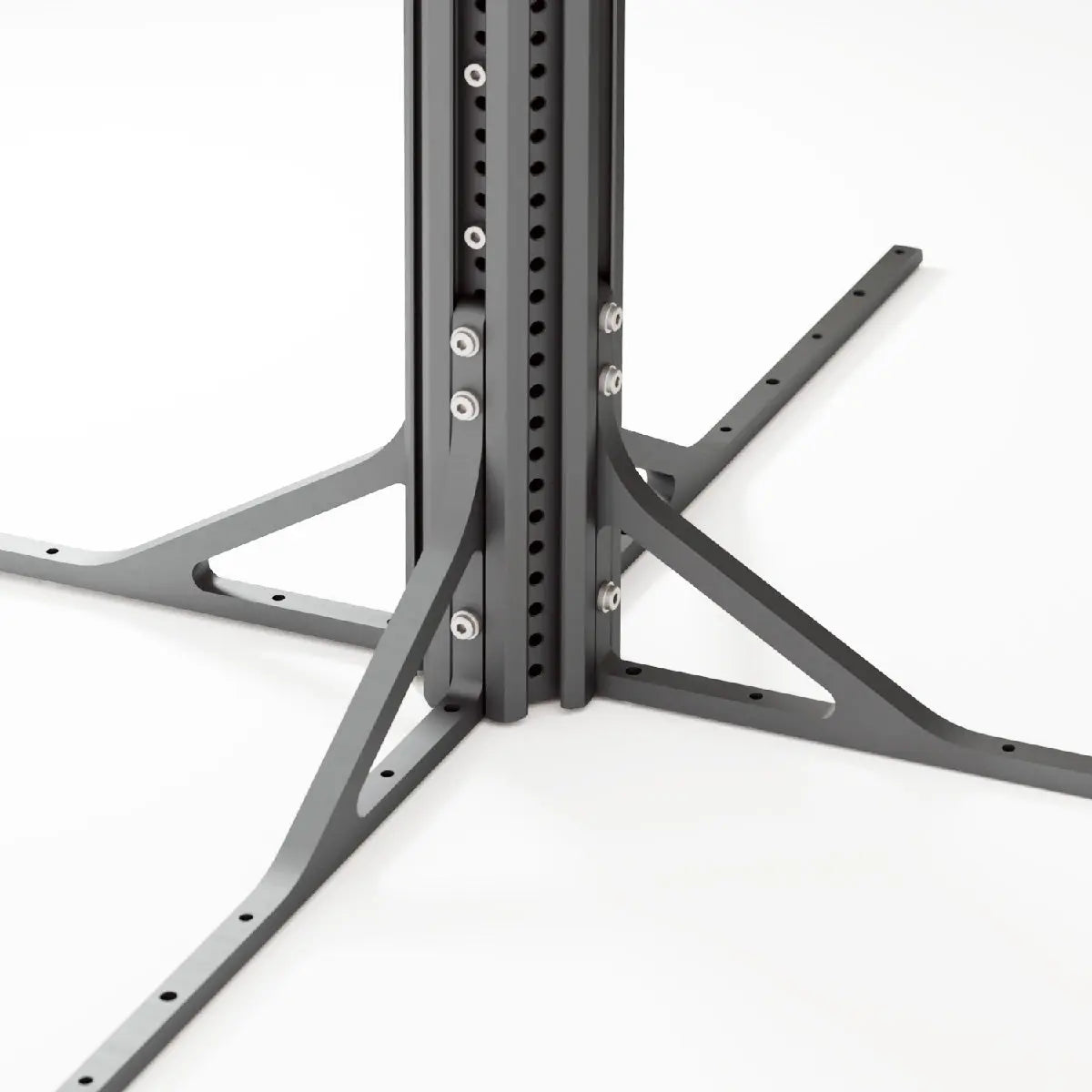

120 Flat Plate Stand, use for support of the Ultra Pillars. Multiple mounting methods are available. Recommended to be used at least 2-4 pcs on each standing pillar. Threaded and unthreaded through holes on the bottom to adapt to different ground conditions or vibration-absorbing requirements.
Works with (not included):
- 1pc 120-series Ultra Pillar
- 4pcs M8x1.25x40mm Socket Screws
- 4pcs M8 washers / lock washers (optional)
- 1-3 pcs of another 120-series Flat Plate Stand
- threadlocker glue (optional for permanent installations)
- stands, casters or wheels (optional)
Angle & shape customizing available by special order. Contact for pricing and lead time

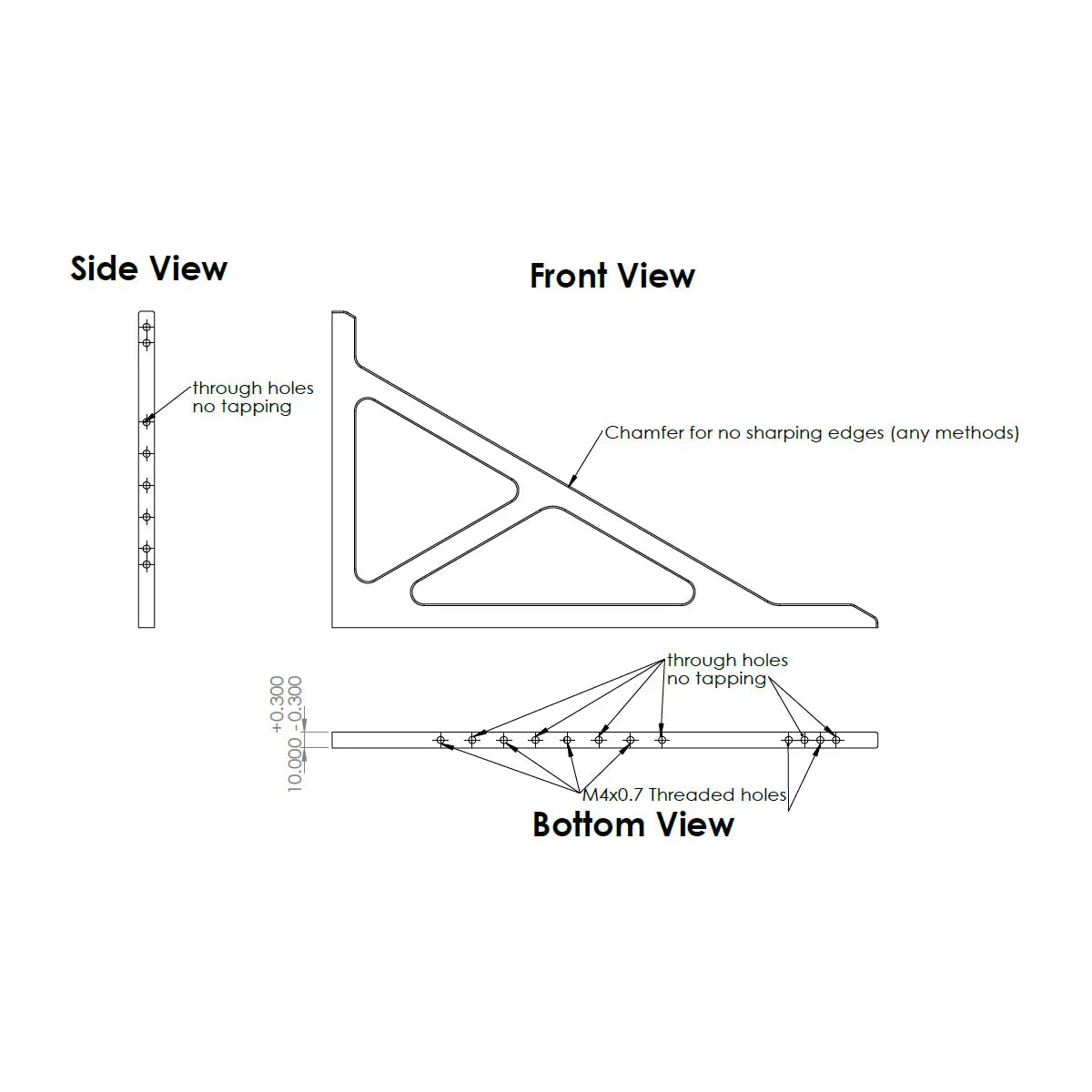

Size Guide
120 | 60 | |
---|---|---|
Dimension | 260 x 620 x 20mm | 200 x 345 x 10mm |
Weight | 987g | 400g |
Screws | M8x1.25x40mm | M4x0.7x20mm |
Material | 6061 T6 Al | 6061 T6 Al |
